GFK Series One Way Clutch Bearing Sprag Type Backstop Clutch with Precision Rating P0 Bore Diameter 20-50mm and Outer Diameter 37-42mm

Name: GFK Series One Way Clutch Bearing Sprag Type Backstop Clutch with Precision Rating P0 Bore Diameter 2050mm and Outer Diameter 3742mm
Brand: SUMA
Price: 85 USD

Model Number : GFK50

Brand Name : SUMA

Place of Origin : Jiangsu, China

MOQ : 2

Price : $85

Precision Rating : P0

Seals Type : Sealed

Type : sprag

Outer diameter : 37-42mm

Bore diameter : 20-50mm

Working temperature : -20 °C to + 100°C

Structure : sprag freewheel

Torque Capacity : 41-240Nm

Overrunning speeds : 5500-3400 min-1

Bearing series : 5904-5910

Dynamic load rollers : 4400-10000 N

Dynamic load balls : 2750-7800 N

Static load rollers : 2900-6950 N

Static load balls : 2750-7800 N

Weight : 0.09-0.36 kg

Contact Now

GFK series One Way Sprag Type Backstop Clutch GFK50

Product Description

Features of gfk sprag clutch

Type GF, GFK is a sprag freewheel integrated into a 59. series ball bearing.

The dedign provides high torque capacity for minimal outside diameter.

Structure of gfk sprag clutch

It is a beaing supported type, delivered grease lubricated. Oil bath lubrication is also possible. Besides, whatever the lubrication type, seals should be provided.

Installation instruction of gfk sprag clutch

Torque transmission must be ensured by a press fits assembly into a rigid outer housing with R6 tolerance, and onto a shaft with P5 tolerance.

Catalogue of gfk sprag clutch for your choice

Type	Size		Overrunningspeeds		Bearing series	Loads							Weight
Type	Size		Overrunningspeeds		Bearing series	Rollers dyn.	Balls dyn.	Rollers stat.	Balls stat.				Weight
GFK	d	TKN1)	n imax2)	n amax3)		C	C	C0	C0	D	L	r
	[mm]	[Nm]	[min-1]	[min-1]		[N]	[N]	[N]	[N]	[mm]	[mm]	[mm]	[kg]
	20	51	5500	4000	5904	5600	4400	2900	2750	37	23	0.5	0.09
	25	65	5300	3800	5905	6300	5300	3450	3350	42	23	0.5	0.11
	30	95	5000	3500	5906	7700	5500	4600	3650	47	23	0.5	0.13
	35	204	4600	3200	5907	8200	8500	5200	5700	55	27	1	0.2
	40	315	4200	3000	5908	8650	9300	5750	6700	62	30	1	0.3
	45	370	3800	2500	5909	9200	9700	6350	7300	68	30	1	0.34
	50	460	3400	2200	5910	9650	10000	6950	7800	72	30	1	0.36

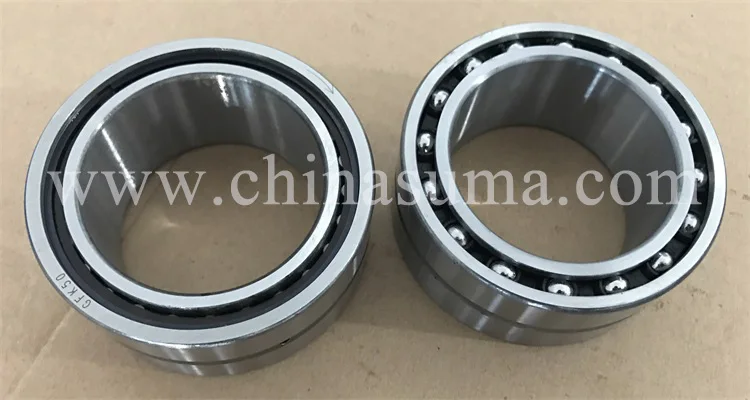

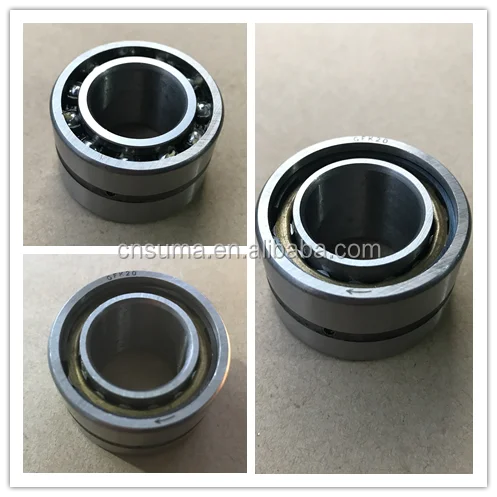

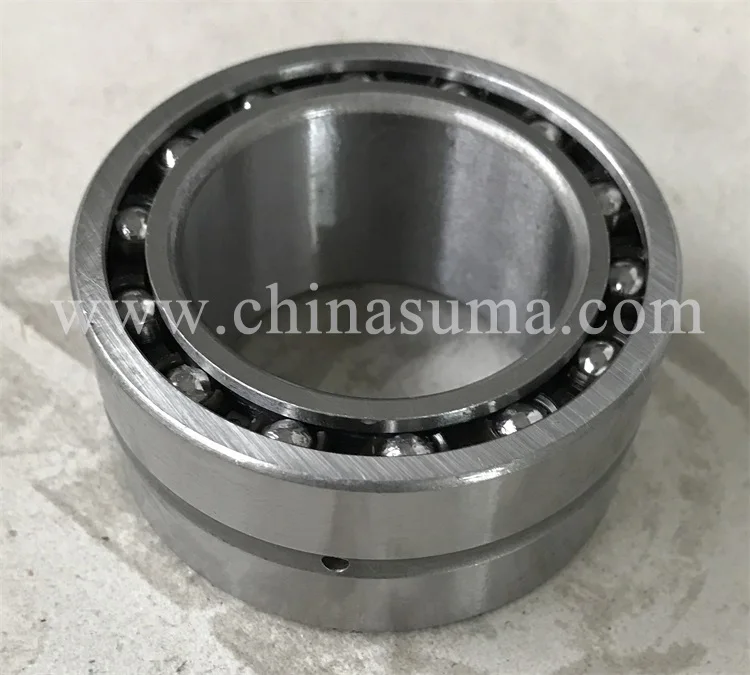

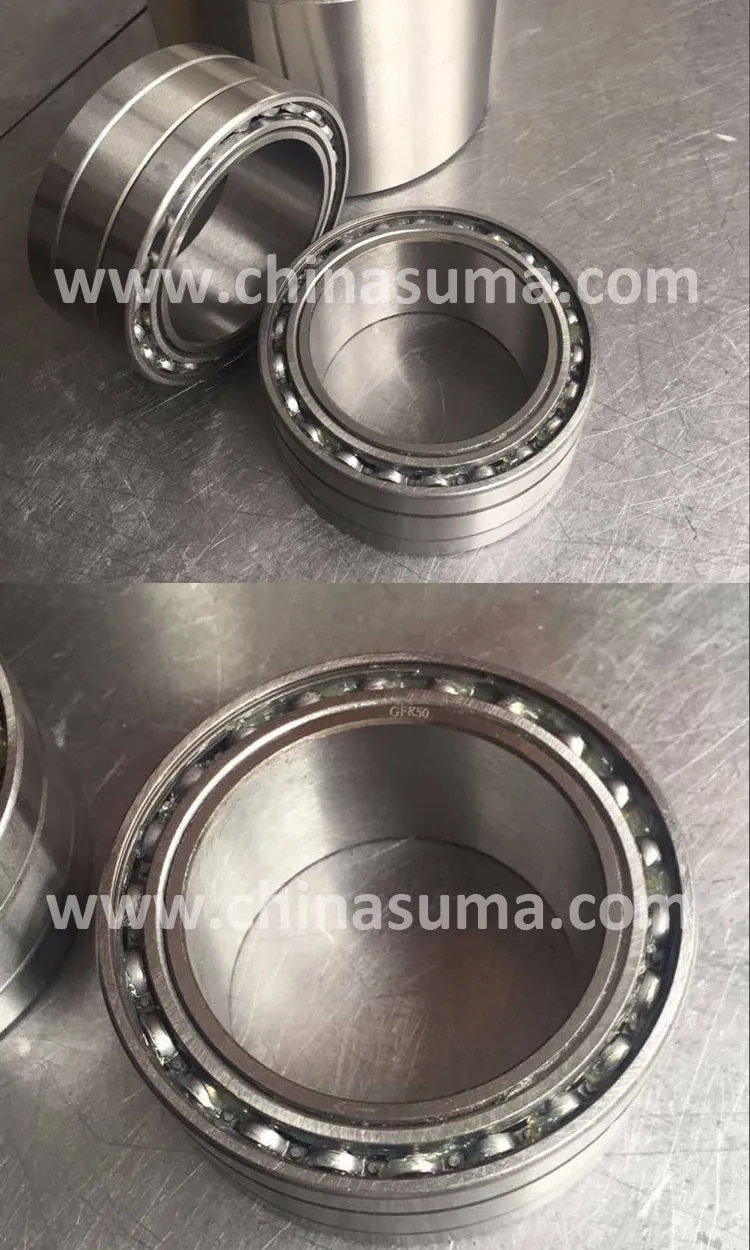

Detailed Images

Packaging

GFK Series One Way Clutch Bearing Sprag Type Backstop Clutch with Precision Rating P0 Bore Diameter 20-50mm and Outer Diameter 37-42mm Images
