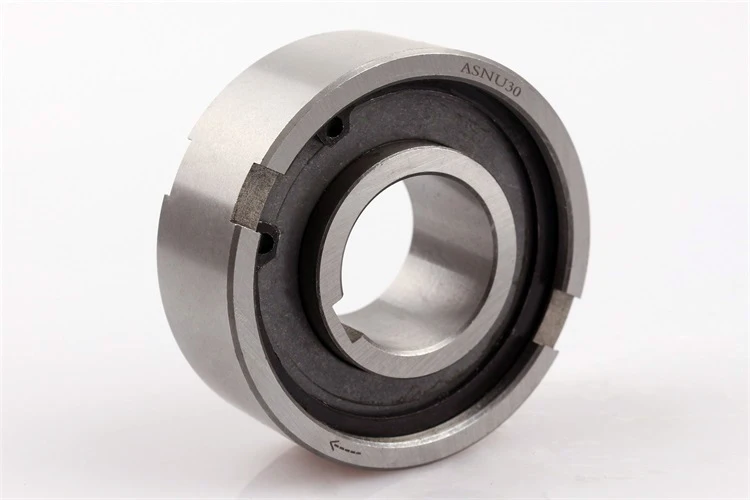

ASNU50 ASNU 50 TFS50 One Way Clutch Bearing with 40mm Bore 538Nm Torque and P0 Precision for Industrial Applications
Premium Products
ASNU50 ASNU 50 TFS50 One Way Clutch Bearing with 40mm Bore 538Nm Torque and P0 Precision for Industrial Applications
1
2
3
4
5
6
Brand Name :SUMA or OEM
Place of Origin :jiangsu
Model Number :ASNU50
MOQ :2
Price :$18-24
Bore Size :40 - 40.001 mm
Number of Row :Single row
Precision Rating :P0
Weight :0.92kg
Material :GCr15
Torque :538Nm
Seals Type :seal
Overrunning Speed :1100 - 1700 min-1
Drag Torque :38 Ncm
Outer Diameter :90 mm
Inner Diameter :78 mm
Length :33 mm
Width :12 mm
Keyway Width :4.1 mm
Keyway Depth :2.5 mm
Contact Now
ASNU50 ASNU 50 TFS50 One Way Clutch Bearings Freewheel Overrunning Clutch
Product Description
Feature

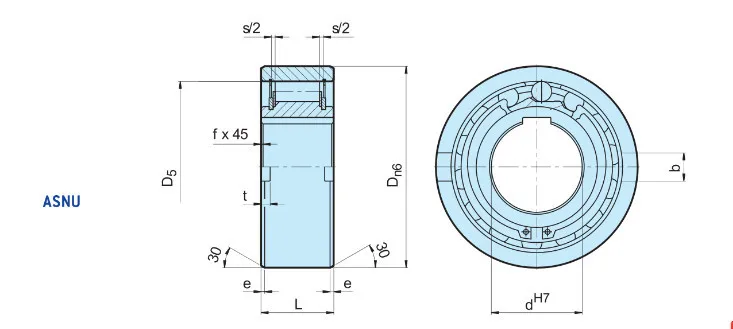

Type ASNU is a roller type freewheel nonbearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outer diameter is the same as a series 63...Ball bearing. A typical arrangement is to install this type alongside a bearing within the same location tolerances, as shown on the following page. The inner race is keyed to the shaft. The outer race has positive n6 tolerance, to give a press fit in a H7 housing. Additional side notches in the outer race provide for positive torque transmission. If the housing is to K6 tolerance, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly. This design can accept an axial misalignment of inner and uter race of ± S/2.
Type
Size
Overrunning
Speeds
Weight
Drag torque
ASNU
dH7
TKN1)
nimax2)
namax3)
Dn6
D5
L
b
t
s
e
f
TR
[mm]
[Nm]
[min-1]
[min-1]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[kg]
[Ncm]
8
12
3300
5000
35
28
13
4
1.4
2.4
0.6
0.3
0.07
1.6
12
12
3300
5000
35
28
13
4
1.4
2.4
0.6
0.3
0.06
1.6
15
30
2400
3600
42
37
18
5
1.8
2.4
0.8
0.3
0.11
1.9
17
49
2300
3400
47
40
19
5
2.3
2.4
1.2
0.8
0.15
1.9
20
78
2100
3100
52
42
21
6
2.3
2.4
1.2
0.8
0.19
1.9
25
125
1700
2600
62
51
24
8
2.8
2.4
1.2
0.8
0.38
5.6
30
255
1400
2200
72
60
27
10
2.5
2.4
1.8
1
0.54
14
35
383
1200
1900
80
70
31
12
3.5
2.4
1.8
1
0.74
16
40
538
1100
1700
90
78
33
12
4.1
2.5
1.8
1
0.92
38
45
780
1000
1600
100
85
36
14
4.6
2.5
1.8
1
1.31
43
50
1013
850
1350
110
92
40
14
5.6
2.5
1.8
1
1.74
55
60
1825
750
1050
130
110
46
18
5.5
3.6
2.6
1.5
2.77
110
70
2300
600
950
150
125
51
20
6.9
3.6
2.6
1.5
4.16
140
80
3275
550
850
170
140
58
20
7.5
3.6
2.6
1.5
6.09
180
90
5325
500
750
190
160
64
20
8
3.6
2.6
2
8.2
230
100
7250
450
680
215
175
73
24
8.5
3.6
2.6
2
12.6
380
120
13500
370
550
260
215
86
28
10
3.6
2.6
2.5
22
650
150
26625
300
460
320
260
108
32
12
3.6
3.6
2.5
42
1000
200
44500
230
350
420
350
138
45
16
7.6
3.6
3
93
2000
MOUNTING EXAMPLE
Detailed Image
Packaging & Shipping
Certifications
Company Information
Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various One way bearing, One way clutch, Backstop clutch, Overrunning clutch, Needle roller bearing and other bearings with high technology.
FAQ
Q: How do you pack the goods?
Total less than 25 KG:Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG :Carton box +Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
