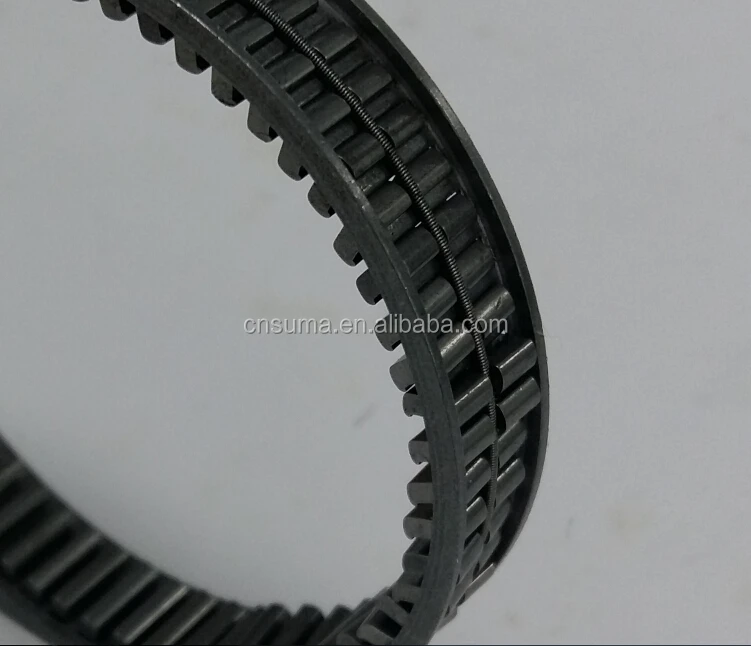

FE 455 Z Sprag Clutch One Way Bearing with 12mm Bore 22mm Outer Diameter and 44 N.m Torque for Electric Bicycle
Premium Products
FE 455 Z Sprag Clutch One Way Bearing with 12mm Bore 22mm Outer Diameter and 44 N.m Torque for Electric Bicycle
1
2
3
4
Model Number :FE455Z
Brand Name :SUMA
Place of Origin :Jiangsu, China
MOQ :2
Price :$6.40-7
Precision Rating :P0
Seals Type :OPEN
Clutch Type :SPRAG, Freewheel
Material :Chrome Steel
Torque :44 N.m
Max Idling Speed :5300 rpm
Bore Diameter :12mm
Outer Diameter :22mm
Indexing Frequency :Variable
Lubrication Requirement :Required (non-sealed)
Drag Reduction :Lubrication dependent
Torque Range :0.3-914 N.m
Idling Speed Range :1,300-10,000 rpm
Load Direction :One way
Friction Contact :Unidirectional
Contact Now
FE 455 Z FE455Z Sprag Clutch One Way Bearings for Electric Bicycle
Product Description
FE series Freewheel-clutches transmit or support torque moment by friction contact in one direction and permit idling in the opposite direction.
USED AS: 1.Indexing elements to change from oscillating to intermittent rotary motion. 2.Backstops to prevent self reversing due to load condition when the machine is not activated. 3.Overrunning clutches to maintain driven unit activated even during slowdown, or in the case of
two speed operation(by independent motors) to switch to the higher speed by passing the slower.
LUBRICATION Lubrication is especially important to obtain maximum life of freewheel clutches. Good lubrication decreases drag. Please refer to our Lubrication Selection Table for proper
selection. Clutches (except the sealedClutches of series FND, FPD, FK 62...-RS, FK 62...-2RS, FKN...-RS , and FKN...-2RS) are shipped rustprotected not lubricated.
Dimensions
[mm]
FE 400
FE 400 Z
FE 400 Z2
Idling speed Clutch
dL
DL
Part Number
Torque
M
[N.m]
Part Number
Torque M
[N.m]
Part
Number
Torque
M
[N.m]
nmax [RPM]
2
10
FE 410 Z2
0.3
10,000
4
12
FE 412 Z
3
FE 412 Z2
1.8
10,000
5
13
FE 413 Z2
2.9
9,000
6
14
FE 414 Z
7
FE 414 Z2
2.6
8,500
8
16
FE 416 Z
12
FE 416 Z2
7.6
7,500
14
22
FE 422
48
FE 422 Z
44
FE 422 Z2
21
5,300
15
23
FE 423
55
FE 423 Z
48
FE 423 Z2
24
5,200
17
25
FE 425
68
FE 425 Z
58
FE 425 Z2
30
4,700
19
27
FE 427
80
FE 427 Z
66
FE 427 Z2
36
4,400
20
28
FE 428
87
FE 428 Z
75
FE 428 Z2
39
4,200
22
30
FE 430
101
FE 430 Z
87
FE 430 Z2
46
4,000
24
32
FE 432
116
FE 432 Z
97
FE 432 Z2
52
3,700
25
33
FE 433
124
FE 433 Z
107
FE 433 Z2
56
3,600
27
35
FE 435
141
FE 435 Z
121
FE 435 Z2
64
3,400
29
37
FE 437
158
FE 437 Z
137
FE 437 Z2
71
3,200
30
38
FE 438
168
FE 438 Z
144
FE 438 Z2
76
3,100
34
42
FE 442
207
FE 442 Z
178
FE 442 Z2
93
2,800
35
43
FE 443
217
FE 443 Z
187
FE 443 Z2
98
2,700
40
48
FE 448
272
FE 448 Z
235
FE 448 Z2
122
2,500
45
53
FE 453
333
FE 453 Z
281
FE 453 Z2
146
2,200
50
58
FE 458
400
FE 458 Z
345
FE 458 Z2
178
2,000
51
59
FE 459
414
FE 459 Z
357
55
63
FE 463
472
FE 463 Z
407
FE 463 Z2
202
1,900
60
68
FE 468
550
FE 468 Z
474
FE 468 Z2
243
1,750
62
70
FE 470
583
FE 470 Z
502
1,700
65
73
FE 473
633
FE 473 Z
545
1,600
70
78
FE 478
722
FE 478 Z
622
1,500
80
88
FE 488
914
FE 488 Z
788
1,300
MARKS
A large quantity of freewheel-clutches with varying design features and dimensions are available ,depending on requirements such as: Torque, indexing frequency, idling speed and environment.
The supporting equipment around the clutch has to be built accurately and of high quality for the
clutch to operate properly .This is why we offer support units or completeassembliesoffreewheel
clutches.
PICTURES
FAQ
Q: How do you pack the goods?
Total less than 25 KG:Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG :Carton box +Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
