P0 Precision Sprag Overrunning Clutch with Gcr15 Sprag Material and 10mm Thickness One Way Bearing

Model Number : DC 5776B 4C

Brand Name : SUMA

Place of Origin : China

MOQ : 2

Price : $6.70-8.60

Precision Rating : P0

Seals Type : OPEN

Type : SPRAG

Sprag Material : Gcr15

Thickness : 10mm

Sprag Quantity : 12 Pieces

Torque Capacity : 63Nm

Outer Diameter : 74.42

Bore Size : 57.76

Weight : 0.03kg

Overrunning Speed (outer) : 750

Overrunning Speed (inner) : 1500

Surface Hardness : HRC 60-62

Core Hardness : HRC35-45

Surface Roughness : 22CLA

Contact Now

DC5776A DC5776B DC5776C Sprag Overrunning Clutch

One Way Bearing Supplier DC 5776B 4C

Product Description

P0 Precision Sprag Overrunning Clutch with Gcr15 Sprag Material and 10mm Thickness One Way Bearing

Data Sheet

Item DC5776-N
Outer Diameter 74.42
Bore Size 57.76
Norminal Torque 63
Weight 0.03kg
Sprags Quantity 12
Overrunning Speed(outer race) 750
Overrunning Speed (inner race) 1500
Port Shanghai;Ningbo
Delivery Time 1-2 Days

Feature

Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing.

The DC type version-N accepts all types of lubricants currently used in the power transmis-sion equipement.

-Tolearance

The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly as shown on following data sheet.

-Hardness
Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0, 6 mm minimum.
Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA.

Maximum taper between races: 0, 007 mm for 25 mm width.

Different Sizes for Your Reference

P0 Precision Sprag Overrunning Clutch with Gcr15 Sprag Material and 10mm Thickness One Way Bearing

Type

Drag torque

Size(mm)

Number of clips

Tkn(NM)

a

c

sprag space

e

d

b

DC2222G

50

22.225

38.885

8.33

10

50

17

DC2776

95

27.762

44.422

8.33

13.5

58

21

DC3034

99

30.34

47

8.33

13.5

62

23

DC3175(3C)

127

31.75

48.41

8.33

13.5

63

24

3

DC3809A

220

38.092

54.752

8.33

16

71

29

DC4127(3C)

179

41.275

57.935

8.33

13.5

75

32

3

DC4445A

290

44.45

61.11

8.33

16

79

34

DC4972(4C)

245

49.721

66.381

8.33

13.5

86

38

4

DC5476A

420

54.765

71.425

8.33

16

92

42

DC5476A(4C)

420

54.765

71.425

8.33

16

92

42

4

DC5476B(4C)

615

54.765

71.425

8.33

21

92

42

4

DC5476C(4C)

792

54.765

71.425

8.33

25.4

92

42

4

DC5776A

483

57.76

74.42

8.33

16

98

44

DC6334B

645

63.34

80

8.33

21

104

50

DC7221(5C)

540

72.217

88.877

8.33

13.5

115

56

5

DC7221B

1023

72.217

88.877

8.33

21

115

56

DC7221B(5C)

1023

72.217

88.877

8.33

21

115

56

5

DC7969C(5C)

1630

79.698

96.358

8.33

25.4

124

61

5

DC8334C

1645

83.34

100

8.33

25.4

132

65

DC8729A

1000

87.29

103.96

8.33

16

134

67

DC10323A(3C) *

1290

103.231 **

119.891

8.33

16

155

80

3

DC12334C *

3840

123.34 **

140

8.33

25.4

184

96

DC12388C(11C)

3900

123.881

142.88

9.5

25.4

196

96

11

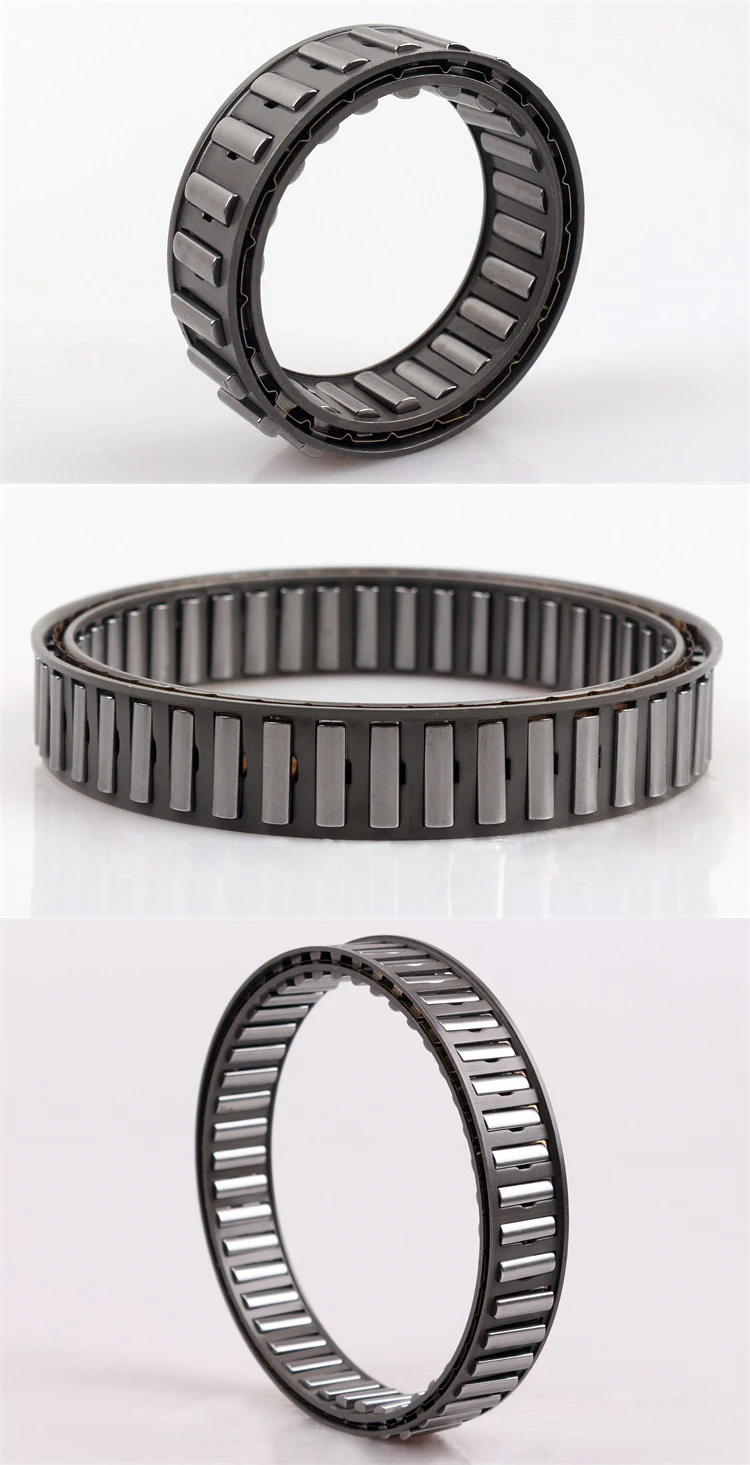

Detailed Image

P0 Precision Sprag Overrunning Clutch with Gcr15 Sprag Material and 10mm Thickness One Way BearingP0 Precision Sprag Overrunning Clutch with Gcr15 Sprag Material and 10mm Thickness One Way BearingP0 Precision Sprag Overrunning Clutch with Gcr15 Sprag Material and 10mm Thickness One Way Bearing

Packaging & Shipping

P0 Precision Sprag Overrunning Clutch with Gcr15 Sprag Material and 10mm Thickness One Way Bearing

Company Information

P0 Precision Sprag Overrunning Clutch with Gcr15 Sprag Material and 10mm Thickness One Way Bearing
FAQ

Q: How do you pack the goods?

  • Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
  • Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
