GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque
1
2
3
4
5
6
Model Number :GFR90 F2F3 F3F4
Brand Name :SUMA OR OEM
Place of Origin :Jiangsu, China
MOQ :2
Precision Rating :P0, P6
Seals Type :Sealed
Material :GCr15
Bore size :90mm
Width :158mm
Torque Capacity :14500Nm
Weight :47.2kg
Outer diameter :230mm
Overrunning speed :450 min-1
Precision rate :P6
Type :GFR Series
Bearing support :160 series bearings
Lubrication requirement :Oil lubricated
Stop bolt clearance :13% of bolt diameter
Keyway standard :DIN 6885.1
Contact Now
GFR90 F2F3 F3F4 One Way Roller Bearing Price List
Product Description
GFR...F2F3 F3F4
Data Sheet
Item
GFR90F2F3 F3F4
Material
GCr5
Outer diameter
230 mm
Bore size
90 mm
Width
158 mm
Torque
14500 Nm
Weight
47.2 kg
Overrunning speed
450 min-1
Precisiom rate
P6
Port
Shanghai;Ningbo
Delivery time
7-10 days
Feature

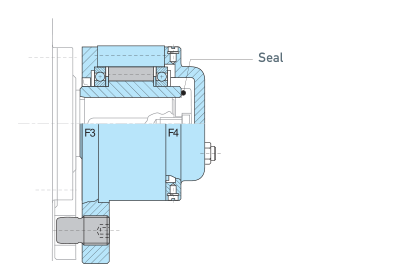

Types GFR..F2F3/F3F4 are roller type freewheels, self-contained, sealed and bearing supported, using two 160.. series bearings.They use the GFR base module. Units must be oil lubricated before use if they are delivered disassembled and in any case for the F3F4 combination. These cover combinations are primarily used as backstops, as shown overleaf.
The F3 cover acts as a torque arm and has an integrated stop bolt. The stop bolt should go into a slot in a fixed part of the machine. The stop bolt must have a radial clearance of 13 % of the bolt's diameter. The torque arm and bearings must not be prestressed in any way. F2 and F4 covers are used to close the unit. They are equipped with 3 screws for oil filling, drain and level. If using cover type F4, shaft end plate and its screw must be sealed to avoid oil leakage through the keyway. Covers are easily fitted, allowing on site selection of rotation direction. If requested units can be delivered assembled and lubricated for the F2F3 combination.

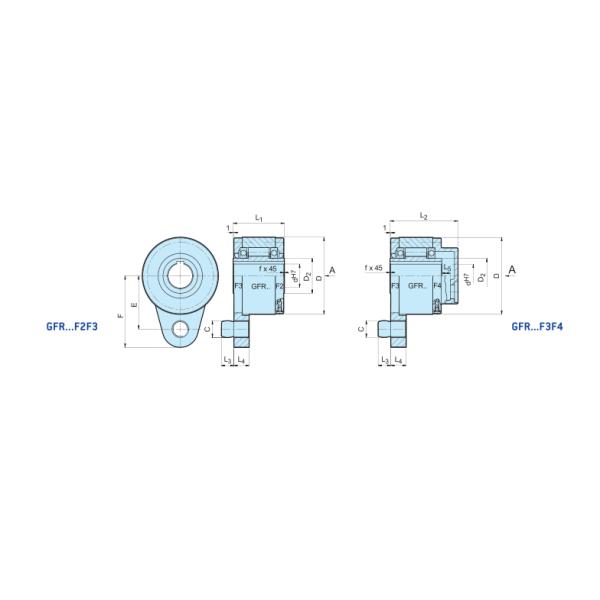

Different Sizes For Your Reference
Type
Size
Overrunning speed
Weight
GFR..F2-F3 GFR..F3-F4
dH7
TKN1)
nimax2)
D
D2
C
L 1
L2
L3
L4
F
E
L5
f
[mm]
[Nm]
[min-1]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[kg]
12
55
3100
62
20
10
42
64
10
13
59
44
6
0.5
1.4
15
125
2800
68
25
10
52
78
10
13
62
47
10
0.8
1.8
20
181
2400
75
30
12
57
82
11
15
72
54
10
0.8
2.3
25
288
1600
90
40
16
60
85
14
18
84
62
10
1
3.4
30
500
1300
100
45
16
68
95
14
18
92
68
10
1
4.5
35
725
1200
110
50
20
74
102
18
25
102
76
12
1
5.6
40
1025
850
125
55
20
86
115
18
25
112
85
12
1.5
8.5
45
1125
740
130
60
25
86
115
22
25
120
90
12
1.5
8.9
50
2125
580
150
70
25
94
123
22
25
135
102
12
1.5
12.8
55
2625
550
160
75
32
104
138
25
30
142
108
15
2
16.2
60
3500
530
170
80
32
114
147
25
30
145
112
15
2
19.3
70
5750
500
190
90
38
134
168
30
35
175
135
16
2.5
23.5
80
8500
480
210
105
38
144
178
30
35
185
145
16
2.5
32
90
14500
450
230
120
50
158
192
40
45
205
155
16
3
47.2
100
20000
350
270
140
50
182
217
40
45
230
180
16
3
76
130
31250
250
310
160
68
212
250
55
60
268
205
18
3
110
150
70000
200
400
200
68
246
286
55
60
325
255
20
4
214
Note
1) T max = 2 × T KN
2) Inner race overruns
Keyway to DIN 6885.1
When ordered assembled, please specify direction of rotation seen from arrow „A“: „R“ Inner race overruns in clockwise direction, „L“ Inner race overruns in counter-clockwise direction
Mounting

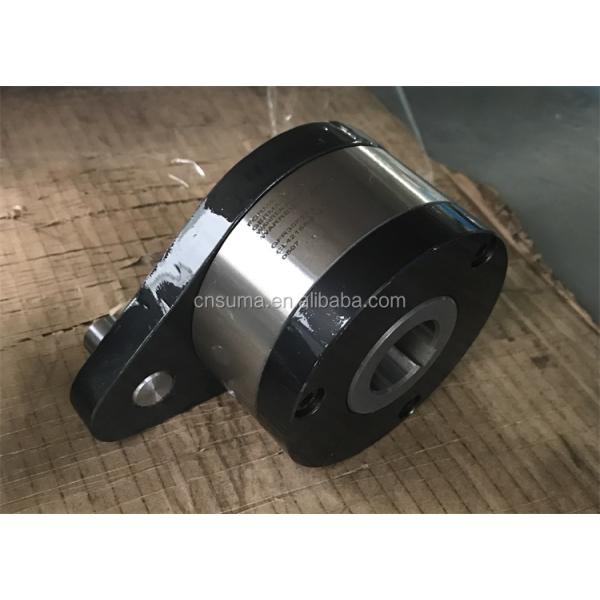

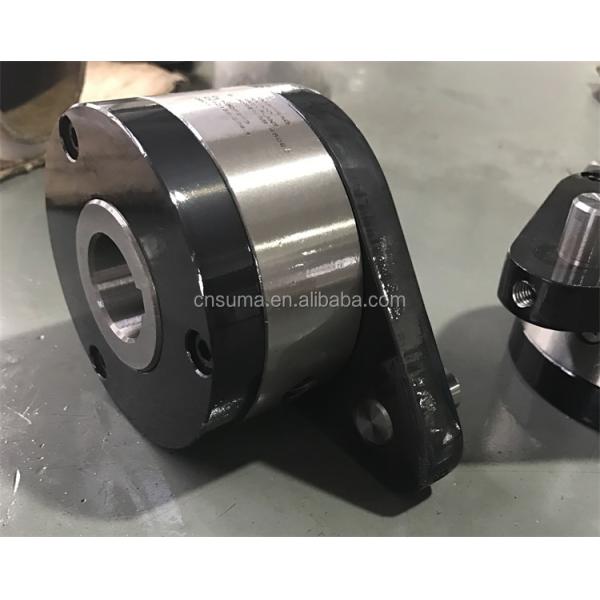

Detailed Image
Certifications
Company Information
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Advantages 1. Advanced producing equipment. 2. Strict requirement for the raw material 3. Complete&perfect process flow 4. Good quality of each batch of the product 5. Different grades of price for different quality
Production Flow
Production&Text

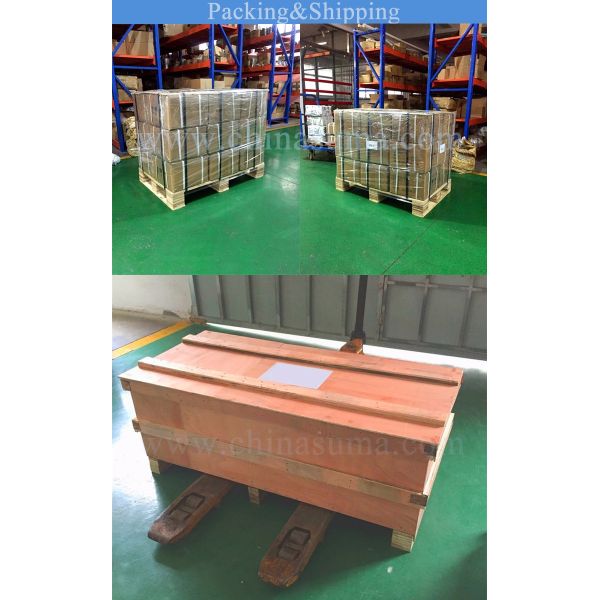

Packing&Shipping
FAQ
Q: Why do we choose your company?
A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples of one way clutch bearing to check quality first.
If you have any needs, pls contact me at any time!
